LMX5252 Datasheet PDF – Bluetooth Radio IC

Part Number : LMX5252

Function : Bluetooth Radio

Package : WQFN 36 Pin Type

Manufacturers : Texas Instruments

Pinouts :

LMX5252 datasheet



Description :

The LMX5252 provides a very compact radio solution for Bluetooth applications that put extra strong requirements on low cost and small form factors. In addition, the application benefits from very low signal loss between the antenna and the radio.

The radio completely integrates the receiver and transmitter baluns, the antenna switch, and
filter together with the voltage-controlled oscillator (VCO) tank on one single die.

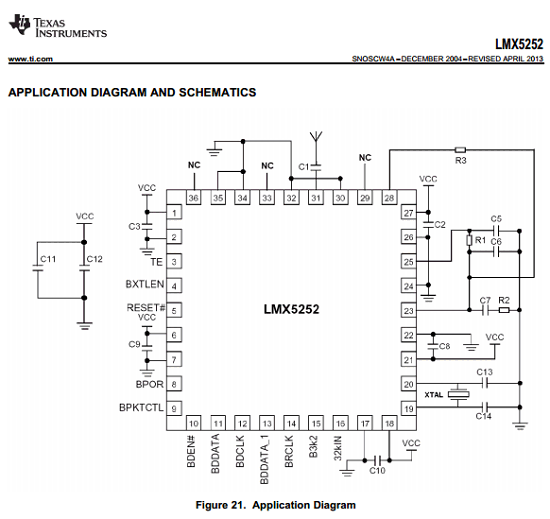

Application Circuits :

Applications :

1. PDAs

2. Notebook PCs

3. Computer peripherals

4. Office network equipment

5. Home applications

LMX5252 Datasheet PDF Download


LMX5252 pdf

Other data sheets within the file :

LMX5252LQ/NOPB, LMX5252LQX/NOPB, X5252LQ
