LTA320AP05 Datasheet – 32″ TFT-LCD Panel – Samsung

Part Number : LTA320AP05

Function : 32″, 1366 x 768, TFT LCD Panel

Manufactures : Samsung


LTA320AP05 image

Description

LTA320AP05 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT(Thin Film Transistor) as switching components This model is composed of a TFT LCD panel TFT (Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel, a driver circuit and a back light unit. The resolution of a 32.0“ is 1366 x 768 and this model can display up to 16.7 million colors with wide viewing angle of 89′ or higher in all directions. This panel is intended to support applications to provide a excellent performance for Flat Panel Display such as Home-alone Multimedia TFT-LCD TV and High Definition TV

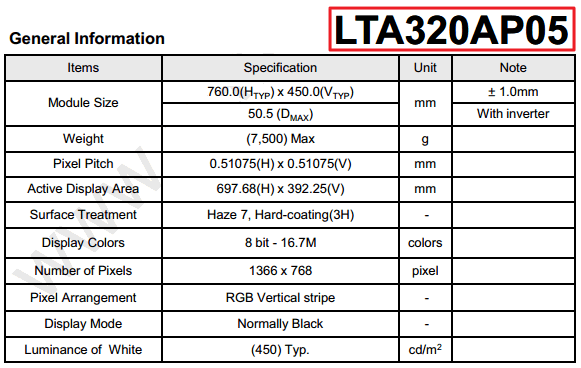

LTA320AP05 datasheet manual

Features

  1. RoHScompliance (Pbfree)
  2. RoHS compliance (Pb-free)
  3. High contrast ratio & aperture ratio with wide color gamut
  4. PVA (Patterned Vertical Align) mode
  5. Wide viewing angle ( +- 178′ )
  6. High speed response
  7. HD resolution (16:9)
  8. Low Power consumption
  9. DirectU-Type 4 CCFLs (Cold Cathode Fluorescent Lamp) Direct UType 4 CCFLs (Cold Cathode
  10. Fluorescent Lamp)
  11. DE (Data Enable) mode
  12. LVDS (Low Voltage Differential Signaling) interface (1pixel/clock)

General Precautions

1 Handling
(a) When the module is assembled, It should be attached to the system firmly using every mounting holes. Be careful not to twist and bend the modules.
(b) Refrain from strong mechanical shock and / or any force to the module. In addition to damage, this may cause improper operation or damage to the module and CCFL back-light.
(c) Note that polarizers are very fragile and could be easily damaged. Do not press or scratch the surface harder than a HB pencil lead.
(d) Wipe off water droplets or oil immediately. If you leave the droplets for a long time, Staining and discoloration may occur.

LTA320AP05 Datasheet
