LTC5800-WHM Datasheet PDF – Smart Mesh Wireless HART

Part Number: LTC5800-WHM

Function: SmartMesh WirelessHART Mote-on-Chip

Package: 72-Lead (10mm × 10mm × 0.85mm) Plastic QFN

Manufacturer: Linear Technology, Analog Devices

Image:

LTC5800-WHM datasheet



Description

SmartMesh WirelessHART wireless sensor networks are self managing, low power networks built from wireless nodes called motes. The LTC5800-WHMis the WirelessHART Mote-on-Chip integrated circuit in the Eterna – family of IEEE802.15.4 System-on-Chip(SoC) solutions, featuring a highly integrated, low power radio design by Dust Networks as well as an ARM Cortex-M3 32-bit microprocessor running Dust’s embedded SmartMesh WirelessHART networking software.

The LTC5800-WHM SoC features an on-chip power amplifier(PA) and transceiver, requiring only power supply decoupling, crystals, and antenna with matching circuitry to create a complete wireless node.

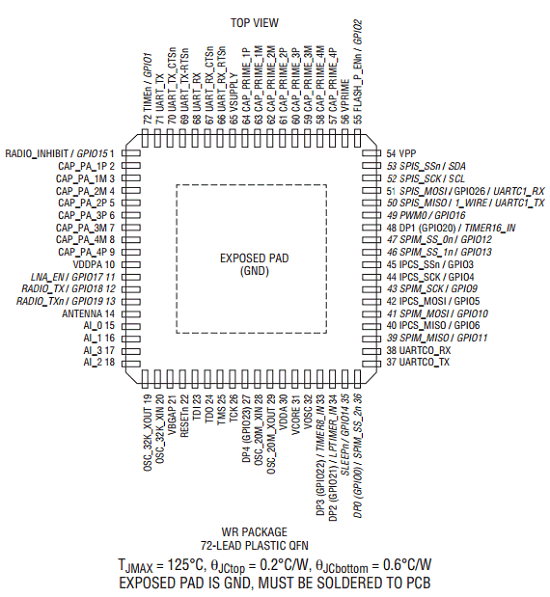

Pinouts:

components

Features

1. Complete Radio Transceiver, Embedded Processor, and Networking Software for Forming a Self-Healing Mesh Network

2. Compliant to WirelessHART (IEC62591) Standard

3. SmartMesh® Networks Incorporate:

(1) Time Synchronized Network-Wide Scheduling

(2) Per Transmission Frequency Hopping

(3) Redundant Spatially Diverse Topologies



LTC5800-WHM Datasheet PDF Download


LTC5800-WHM pdf

Other data sheets are available within the file:

LTC5800WHM, LTC5800WR, LTC5800WR-WHMA, LTC5800WRWHMA
