LTV4N35 Datasheet – Photocoupler ( Phototransistor )

This is one of the Photocoupler types.

This is a kind of thpe semiconductor.

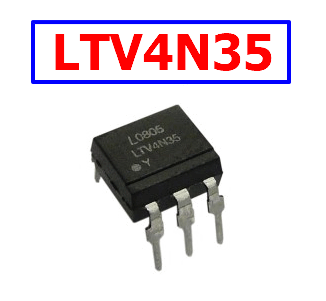

Part Number : LTV4N35

Function : General Purpose Type Photocoupler

Package : DIP 6 Pin Type

Manufactures : Liteon, Vishay


LTV4N35 datasheet arduino

Decription

Each optocoupler consists of gallium arsenide infrared LED and a silicon NPN phototransistor. These families include the LTV4N35, 4N35, 4N36, 4N37, 4N38 couplers.



LTV4N35 Pinout

LTV4N35 pinout

Features

1. High current transfer ratio (CTR : MIN.100% at IF=10mA, VCE=10V)

2. Response time (ton : TYP, 3 s at VCE=10V, IC=2mA, RL=100 )

3. Isolation test voltage 5000 VRMS

4. Interfaces with common logic families



Applications

1. I/O interfaces for computers.
2. System appliances, measuring instruments.
3. Signal transmission between circuits of different
potentials and impedances.
