M10LZ47 Datasheet – Vdrm=800V, Thyristor – Toshiba

Part Number : SM10LZ47, Marking : M10LZ47

Function : Silicon Planar Type Bi-Directional Triode Thyristor

Manufactures : Toshiba

M10LZ47 thyristor SM10LZ47 toshiba
Description

AC POWER CONTROL APPLICATIONS

1. Repetitive Peak Off−State Voltage  : VDRM = 800V

2. R.M.S. On−State Current  : IT (RMS) = 10A

3. High Commutation (dv / dt)

4. Isolation Voltage  : VISOL = 1500V AC

5.Peak Gate Power Dissipation : PGM = 5 W

6. Average Gate Power Dissipation : PG (AV) = 0.5  W

7. Peak Gate Voltage :  VFGM = 10 V

8. Peak Gate Current :  IGM = 2 A



Pinout

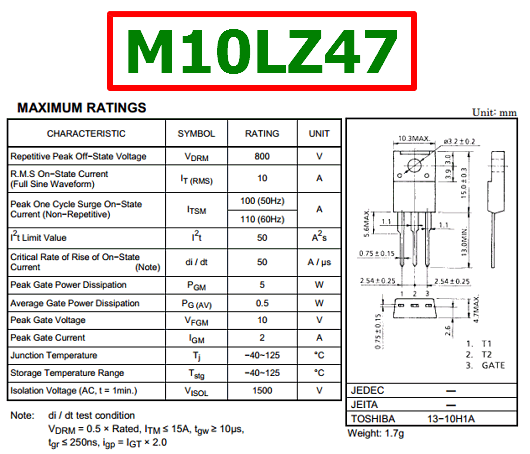

M10LZ47 datasheet pinout
