M185XW01 Datasheet PDF – 18.5 inch Color TFT-LCD Module

Part Number: M185XW01, M185XW01V0, M185XW01-V0

Function: 18.5 inch Color TFT-LCD Module

Active Display Area : 409.8 (H) x 230.4 (V) mm

Number of Pixels : 1366(x3) x 768  pixel

Manufacturer: AUO ( AU Optronics corporation )

Images

M185XW01 Color TFT LCD

Description

This specification applies to the 18.5 inch-wide Color a-Si TFT-LCD Module M185XW01. The display supports the WXGA – 1366(H) x 768(V) screen format and 16.7M colors (RGB 6-bits + Hi-FRC data). All input signals are 1-channel LVDS interface and this module doesn ’t contain an inverter board for backlight.

[…]

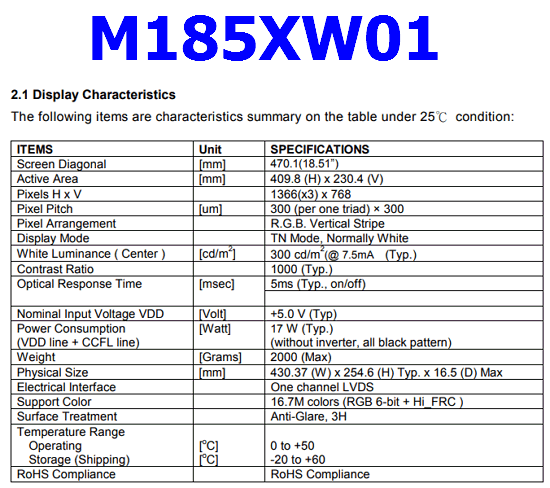

M185XW01 datasheet pinout



Input Terminal Pin Assignment

1 NC No contact (For AUO internal use)
2 NC No contact (For AUO internal use)
3 NC No contact (For AUO internal use)
4 GND Power Ground
5 RXIN0- Negative LVDS differential data input (0)
6 RXIN0+ Positive LVDS differential data input (0)
7 GND Power Ground
8 RXIN1- Negative LVDS differential data input (1)
9 RXIN1+ Positive LVDS differential data input (1)
10 GND Power Ground
11 RXIN2- Negative LVDS differential data input (2)
12 RXIN2+ Positive LVDS differential data input (2)
13 GND Power Ground
14 RXCLKIN- Negative LVDS differential clock input (clock)
15 RXCLKIN+ Positive LVDS differential data input (clock)
16 GND Power Ground
17 RXIN3- Negative LVDS differential data input (3)
18 RXIN3+ Positive LVDS differential data input (3)
19 GND Power Ground
20 NC No contact (For AUO internal use)
21 NC No contact (For AUO internal use)
22 NC No contact (For AUO internal use)
23 GND Power Ground
24 GND Power Ground
25 GND Power Ground
26 VCC +5V power supply
27 VCC +5V power supply
28 VCC +5V power supply
29 VCC +5V power supply
30 VCC +5V power supply



Note ]

Measurement method :

The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt
temperature change during measuring (at surface 35 ) ℃ . In order to stabilize the luminance, the measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and dark room.
