M195RTN01 Datasheet – 19.5 inch Color TFT-LCD

Part Number : M195RTN01, M195RTN01.0, M195RTN01.1

Function : 19.5 inch Color TFT-LCD

Active Area  : 433.92(H) x 236.34 (V) [mm]

Manufacturers : AUO

Image :

M195RTN01 Color TFT LCD

Description :

This specification applies to the19.5 inch wide Color a-Si TFT-LCD Module M195RTN01.0. The display supports the HD+ – 1600(H) x 900(V) screen format and 16.7M colors (RGB 6-bits + Hi-FRC data). The input interface is Dual channel LVDS and this module doesn’t contain an driver board for backlight.

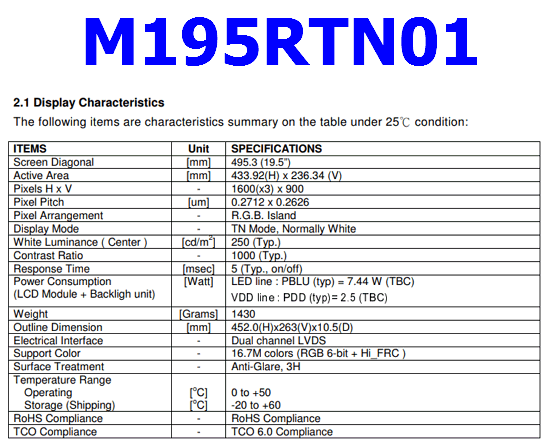

Display Characteristics

M195RTN01 datasheet pinout

Connector Pin Assignment

1 RxO0- Negative LVDS differential data input (Odd data)
2 RxO0+ Positive LVDS differential data input (Odd data)
3 RxO1- Negative LVDS differential data input (Odd data)
4 RxO1+ Positive LVDS differential data input (Odd data)
5 RxO2- Negative LVDS differential data input (Odd data)
6 RxO2+ Positive LVDS differential data input (Odd data)
7 GND Ground
8 RxOCLK- Negative LVDS differential clock input (Odd clock)
9 RxOCLK+ Positive LVDS differential clock input (Odd clock)
10 RxO3- Negative LVDS differential data input (Odd data)
11 RxO3+ Positive LVDS differential data input (Odd data)
12 RxE0- Negative LVDS differential data input (Even data)
13 RxE0+ Positive LVDS differential data input (Even data)
14 GND Ground
15 RxE1- Negative LVDS differential data input (Even data)
16 RxE1+ Positive LVDS differential data input (Even data)
17 GND Ground
18 RxE2- Negative LVDS differential data input (Even data)
19 RxE2+ Positive LVDS differential data input (Even data)
20 RxECLK- Negative LVDS differential clock input (Even clock)
21 RxECLK+ Positive LVDS differential clock input (Even clock)
22 RxE3- Negative LVDS differential data input (Even data)
23 RxE3+ Positive LVDS differential data input (Even data)
24 GND Ground
25 NC No connection (for AUO test only. Do not connect)
26 NC No connection (for AUO test only. Do not connect)
27 NC No connection (for AUO test only. Do not connect)
28 VDD Power Supply Input Voltage
29 VDD Power Supply Input Voltage
30 VDD Power Supply Input Voltage



M195RTN01 Datasheet
