M51977FP Datasheet PDF – Switching Regulator Control

Part Number: M51977FP

Function: Switching Regulator Control, PWM Controller

Package: SOP 20 Pin Type

Manufacturer: MITSUBISHI ELECTRIC

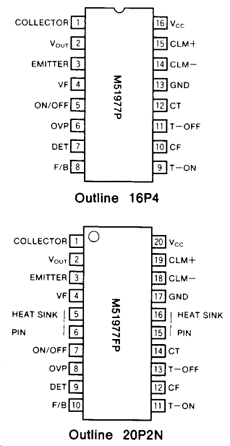

Image and Pinouts:
M51977FP datasheet

Description:

Mitsubishi IC type M51977P, M51977FP are the off-line primary PWM controller which are especially designed for SMPS to get the regulated DC voltage from AC power supply. As the totempole type high power-driver-circuit is integrated in these IC. these IC can drive the MOSFET with fast rise and fast fall ouput pulse.

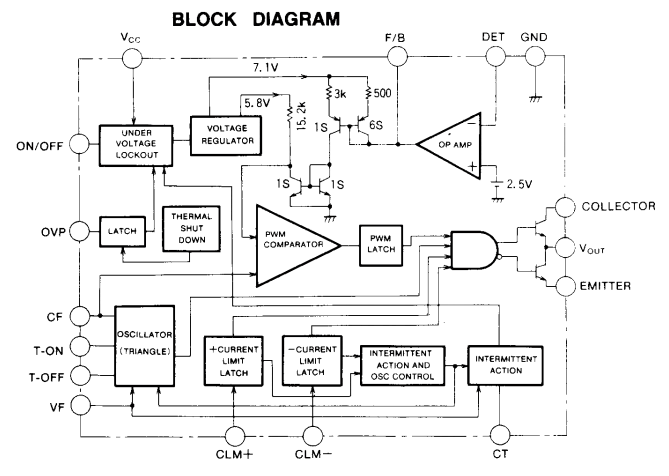

Block Diagram

Features:

1. 500 kHz operation of MOSFET

2. Compact and light-weight power supply

3. High-performance and highly functional power supply

4. Fast rise time of 60ns and fast fall time of 40ns

5. Over-voltage protection circuit ( OVP )

6. Triangular wave oscillator for easy dead time setting

Applications:

1. Feed forward regulator, Fly back regulator

Other data sheets are available within the file: M51977, M51977P
