M74HC266 Datasheet PDF – Quad Exclusive NOR Gate – ST

Part Number : M74HC266

Function : QUAD EXCLUSIVE NOR GATE WITH OPEN DRAIN

Package : DIP, SOP, TSSOP 16 Pin

Manufacturers : STMicroelectronics

Images :

M74HC266 datasheet



Description :

The M74HC266 is an high speed CMOS QUAD EXCLUSIVE NOR GATE fabricated with silicon gate C
2MOS technology. The M74HC266 has a high performance N-channel MOS transistor (OPEN DRAIN output). Input and Output ensure high noise immunity and stable outputs.

Features

1. HIGH SPEED : tPD = 10ns (TYP.) at VCC = 6V
2. LOW POWER DISSIPATION :  ICC = 1mA(MAX.) at TA=25°C
3. HIGH NOISE IMMUNITY : VNIH = VNIL = 28 % VCC (MIN.)
4. WIDE OPERATING VOLTAGE RANGE : VCC (OPR) = 2V to 6V
5. PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 266

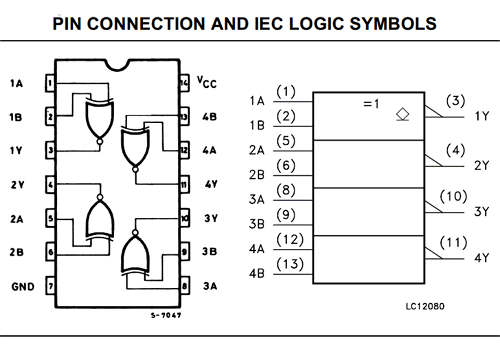

Pinout and Logic Symbol

Other data sheets within the file : 74266, 74HC266, M74HC266B1R, M74HC266M1R
