MAN6630 Datasheet PDF – Seven Segment Display

Part Number : MAN6630

Function : 0.560-INCH SEVEN SEGMENT DISPLAYS

Package : 18 Pin Type

Manufacturers : Fairchild Semiconductor

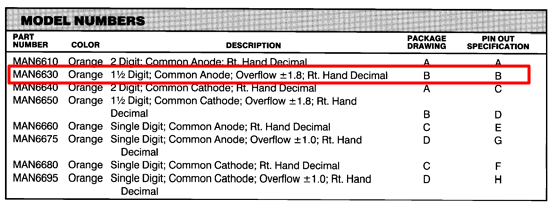

Image :

MAN6630 datasheet



Description :

This is orange color, seven segment display. The MAN6630, MAN6600 Series is a Family of large digits which includes double and single digits.

Features :

1. High performance nitrogen-doped GaAsP on GaP

2. Large, easy to read, digits

3. Low power consumption

4. Rugged plastic construction

5. Directly compatible with integrated circuits

Applications :

1. Digital readout displays

2. Instrument panels

3. Point of sale equipment

4. Digital clocks

5. TV and radios

MAN6630 Datasheet PDF Download


MAN6630 pdf

Other data sheets within the file :

MAN6410, MAN6440, MAN6460, MAN6610
