MAX3238E Datasheet PDF

Part Number : MAX3238E

Function : +3.0V to +5.5V / 10nA / 250kbps RS-232 Transceivers with 15kV ESD-Protected I/O and Logic Pins

Manufacturers : Texas Instruments

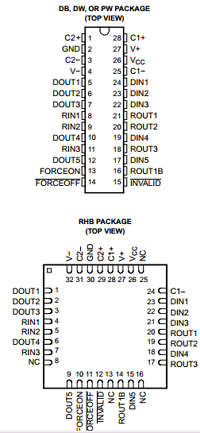

Pinouts :

MAX3238E datasheet

Description :

DESCRIPTION/ORDERING INFORMATION
The MAX3238E consists of five line drivers, three line receivers, and a dual charge-pump circuit with ±15-kV ESD (HBM) protection on the driver output (DOUT) and receiver input (RIN) terminals. The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between notebook and subnotebook computer applications. The charge pump and four small external capacitors allow operation from a single 3-V to
5.5-V supply. In addition, the device includes an always-active noninverting output (ROUT1B), which allows applications using the ring indicator to transmit data while the device is powered down. This device operates at data signaling rates up to 250 kbit/s and a maximum of 30-V/µs driver output slew rate.

FEATURES
• RS-232 Bus-Pin ESD Protection Exceeds
±15 kV Using Human-Body Model (HBM)
• Meets or Exceeds the Requirements of
TIA/EIA-232-F and ITU v.28 Standards
• Operates With 3-V to 5.5-V VCCSupply
• Operates up to 400 kbit/s
• Five Drivers and Three Receivers
• Auto-Powerdown Plus Feature Enables
Flexible Power-Down Mode
• Low Standby Current . . . 1 µA Typical
• External Capacitors . . . 4 × 0.1 µF
• Accepts 5-V Logic Input With 3.3-V Supply
• Always-Active Noninverting Receiver Output(ROUT1B)
• Alternative High-Speed Pin-Compatible Device (1 Mbit/s) for SNx5C3238
• ESD Protection for RS-232 Interface Pins
– ±15 kV – Human-Body Model (HBM)
– ±8 kV – IEC61000-4-2, Contact Discharge
– ±15 kV – IEC61000-4-2, Air-Gap Discharge

APPLICATIONS
• Battery-Powered Systems
• PDAs
• Notebooks
• Subnotebooks
• Laptops
• Palmtop PCs
• Hand-Held Equipment
• Modems
• Printers
