MAX44241 Datasheet PDF – Operational Amplifier

Part Number : MAX44241

Function : 36V, Low-Noise, Precision, Single Op Amp

Package : uMAX/SO 8 Pin, uMAX 5 Pin Type

Manufacturers : Maxim Integrated

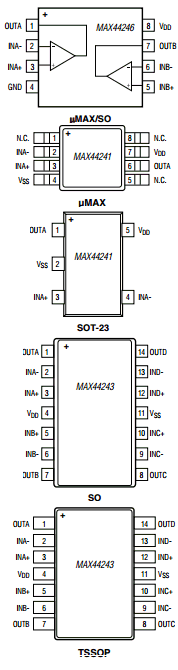

Pinouts :

MAX44241 datasheet



Description :

The MAX44241, MAX44243, MAX44246 are 36V, ultra precision, low-noise, low-drift, single/quad/dual operational amplifiers that offer near-zero DC offset and drift
through the use of patented chopper stabilized and auto-zeroing techniques. This method constantly measures and compensates the input offset, eliminating drift over time and temperature and the effect of 1/f noise. These single/quad/dual devices feature rail-to-rail outputs, operate from a single 2.7V to 36V supply or dual ±1.35V to ±18V supplies, and consume only 0.42mA per channel, with only 9nV/√Hz input-referred voltage noise.
The ICs are unity-gain stable with a gain-bandwidth product of 5MHz. With excellent specifications such as offset voltage of 5FV (max), drift of 20nV/NC (max), and 117nVP-Pnoise in 0.1Hz to 10Hz, these ICs are ideally suited for applications requiring ultra-low noise, and DC precision such as interfacing with pressure sensors, strain gauges, precision weight scales, and medical instrumentation.

Features :

1. 2.7V to 36V Power-Supply Range

2. Ultra-Low Input VOS: 5µV (max)

3. Low 20nV/°C (max) of Offset Drift

4. Low 9nV/√Hznoise at 1kHz

5. 1µs Fast Settling Time

6. 5MHz Gain-Bandwidth Product

7. Rail-to-Rail Output

8. Integrated EMI Filter

9. Low 0.55mA Per Channel (max) Quiescent Current

Other data sheets within the file :

MAX44241AUA+, MAX44241AUK+, MAX44243, MAX44243ASD+
