MAX4626EUK-T Datasheet PDF – SPST Analog Switch

Part Number: MAX4626EUK-T

Function: 0.5Ω, Low-Voltage, Single-Supply SPST Analog Switch

Manufacturer: Maxim Integrated

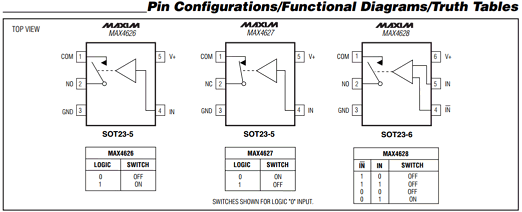

Image and Pinouts:

MAX4626EUK-T datasheet



The MAX4626, MAX4626EUK-T, MAX4627, MAX4628 are low-on-resistance, low-voltage, single-pole/single-throw (SPST) analog switches that operate from a +1.8V to +5.5V single supply. The MAX4626 is normally open (NO), and the MAX4627 is normally closed (NC). The MAX4628 is
normally open (NO) and has two control inputs. These devices also have fast switching speeds (tON = 50ns max, tOFF = 30ns max).

1. Low RON
(1) 0.5Ωmax (+5V Supply)
(2) 0.9Ωmax (+3V Supply)

2. 0.1Ωmax RONFlatness (+5V Supply)

3. Overcurrent Protection

4. Single-Supply Operation (+1.8V to +5.5V)

5. Fast Switching: tON= 50ns max, tOFF= 30ns max

6. TTL-Logic Compatible at +5V

7. Pin Compatible with MAX4514 (MAX4626) , Pin Compatible with MAX4515 (MAX4627)


1. Power Routing

2. Battery-Operated Equipment

3. Audio and Video Signal Routing

4. Low-Voltage Data-Acquisition Systems

MAX4626EUK-T Datasheet PDF Download

MAX4626EUK-T pdf

Other data sheets are available within the file:

MAX4626EUK, MAX4626T ,MAX4627EUK+T, MAX4627EUK-T, MAX4628EUT+T
