MCE-3L4N-002 Datasheet PDF – 1310 nm LED Diode

Part Number : MCE-3L4N-002

Function : 1310 nm No glass Cap LED DIODE

Package : TO-46 Type

Manufacturers : Unity Opto Technology

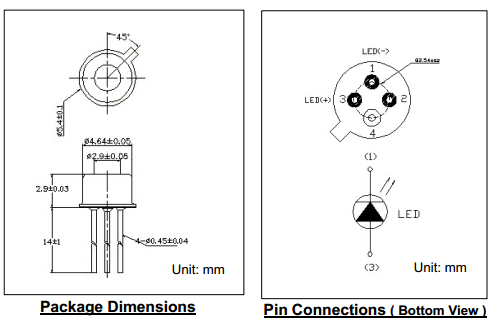

Images :

MCE-3L4N-002 datasheet

Description :

The MCE-3L4N-002 is a high performance InGaAsP surface emitting LED that offers high coupling powers in 1310 nm fiber optic transmission applications. Data rates can vary from DC to 115 MHz depending upon component application. This product is designed for optical fiber communication and other applications. As the drive current varies about the component’s threshold, the optical output increases proportionally.

Features

1. InGaAsP Surface Emitting LED
2. 115 MHz operating bandwidth
3. High speed 1310 nm LED
4. TO-46 packaging with no glass cap

Pinout

Absolute Maximum Ratings (Tc = 25°C)

1. Reverse Voltage : VR = 2 V
2. Forward Current : IF = 150 mA
3. Operating case temperature : Top = – 40 to +85 °C
4. Storage temperature : Tstg = – 40 to +85 °C

Applications

1. Optical data links
2. Optical LANs
3. FDDI
4. O-E Interface Conversion

Other data sheets within the file : MCE3L4N002
