MCH6664 Datasheet PDF – 30V, 1.5A, P-Ch, Power MOSFET

Part Number: MCH6664

Function : -30V, -1.5A, P-Channel MOSFET

Package: MCPH6, SC-88, SOT-363 Type

Manufacturer: On Semiconductor ( https://www.onsemi.com )

Marking Information

MCH6664 image

Description

This is -30V, -1.5A, 325mΩ, Dual P-Channel Power MOSFET.

Features

1. ON-resistance Pch : RDS(on)1=250mΩ (typ.)

2. 4V drive

3. Halogen free compliance

4. Reduces power consumption

5. Reduced mounting area

6. Environmental consideration

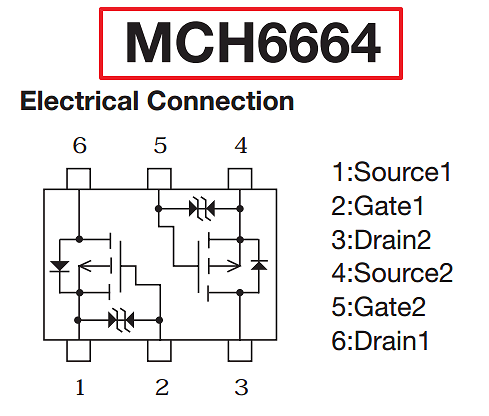

Pinout

MCH6664 datasheet pinout

Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage: VDSS = – 30V

2. Gate to source voltage: VGSS = ± 20 V

3. Drain current: ID = – 1.5 A

4. Power Dissipation: Pd = 0.8 W

5. Channel temperature: Tch = 150 °C

6. Storage temperature: Tstg = -55 to +150 °C



Official Homepage:

1. https://www.onsemi.com/products/discrete-power-modules/mosfets/mch6664

Other data sheets are available within the file: MCH6664TL-W

MCH6664 Datasheet PDF
