MDF4N60B PDF Datasheet – 600V, 4.6A, N-Ch, MOSFET

Part Number: MDF4N60B

Function: 600V, 4.6A, N-Channel Trench MOSFET

Package: TO-220F Type

Manufacturer: MagnaChip

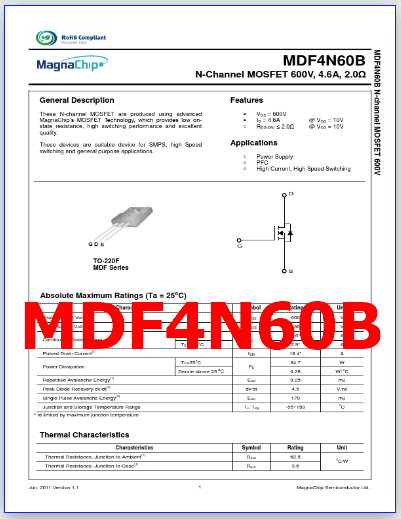

Images:MDF4N60B pdf pinout

Description

MDF4N60B is 600V, 4.6A, N-Ch, MOSFET.  An N-channel MOSFET (Metal Oxide Semiconductor Field Effect Transistor) is a type of field effect transistor (FET) that uses an N-type semiconductor material as the conducting channel to control the flow of current.

When a positive voltage is applied to the gate terminal, it attracts electrons to the channel, creating an inversion layer and allowing current to flow between the source and drain terminals.

N-channel MOSFETs are widely used in a variety of electronic applications due to their high input impedance, fast switching speeds, and low power consumption. They are commonly used as switches, amplifiers, and voltage regulators.

These N-channel MOSFET are produced using advanced MagnaChip’s MOSFET Technology, which provides low onstate resistance, high switching performance and excellent quality. These devices are suitable device for SMPS, high Speed switching and general purpose applications.

Features

1. VDS = 600V

2. ID = 4.6A

3. RDS(ON) ≤ 2.0Ω @ VGS = 10V @ VGS = 10V



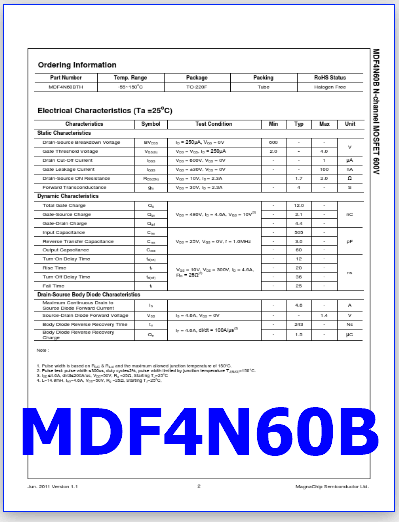

MDF4N60B datasheet mosfet

Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage: VDSS = 600 V

2. Gate to source voltage: VGSS = ± 30 V

3. Drain current: ID = 4.6 A

4. Total Power Dissipation: Pd = 34.7 W

5. Avalanche energy: Ear = 9.25 mJ

6. Channel temperature: Tch = 150 °C

7. Storage temperature: Tstg = -55 to +150 °C



Applications:

1. Power Supply

2. PFC

3. High Current, High Speed Switching

MDF4N60B PDF Datasheet
