MFOE71 Datasheet PDF – 6V, 60mA, Fiber-optic LED

Part Number : MFOE71

Function : Fiber Optics – FLCS Family Infrared LED

Package : FLCS CASE 363B-01 Plastic Type

Manufacturers : Motorola ( Freescale )

Images

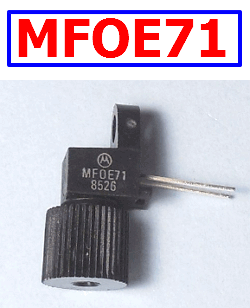

MFOE71 Fiber Optic LED



Description :

The MFOE71 is designed for low cost, medium frequency, short distance Fiber Optics Systems using 1000 micron core plastic fiber.

Features

1. Fast ResponseĀ : 10 MHz
2. Spectral Response Matched to FLCS Detectors : MFOD71, 72, 73, 75
3. FLCS Package
(1) Low Cost
(2) Includes Connector
(3) Simple Fibe Termination and Connection
(4) Easy Board Mounting



Pinouts :

MFOE71 datasheet

Absolute maximum ratings

1. Reverse Voltage : Vr = 6 V
2. Forward Current
(1) Continuous : If = 60 mA
(2) Peak Pulse : If = 1 A
3. Total Power Dissipation : Pd = 150 mW



Applications

1. Medical Electronics
2. Short Haui Communication Systems
3. Medical Electronics
4. Security Systems
5. High Isolation Interconnects
6. M6800 Microprocessor Systems

Other data sheets within the file : MF0E71
