MIP2K4 Datasheet – IPD for Battery Charger – Panasonic

Part Number : MIP2K4

Function : High-Performance IPD for Battery Charger

Package : DIP 7 Pin Type

Manufacturers : Panasonic


MIP2K4 ipd panasonic

„Feature
1. Built-in jitter function

2. Built-in charge protection circuit

3. Built-in overheating, load shorting and overvoltage protection circuits



„Applications

1. Chargers (for DSC, etc.), AC adapter

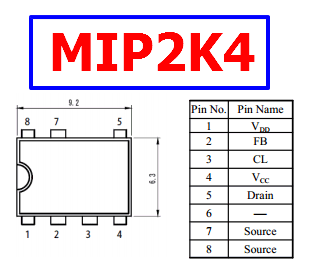

Pinout :

MIP2K4 datasheet pinout
Description :

MIP2K4, MIP2Kx series is a high-performance IPD designed for 15W battery chargers and featuring built-in frequency jitter function at PWM control. It features built-in protection circuits necessary for compact power source charger circuitry. This allows a significant reduction in externally connected parts. It provides PWM control when a normal load is applied and intermittent control with low load. This results in greater efficiency for very low to maximum loads, while also conserving power during standby.



MIP2K4 datasheet information



MIP2K4 Datasheet



Other data sheets within the file : MIP2K2, MIP2K3, MIP2K5
