MIP3E3SMY Datasheet PDF – 700V, MOSFET – Panasonic

Part Number : MIP3E3SMY

Function : Intelligent Power Devices / Silicon MOS type integrated circuit

Package : TO-220 Type

Manufacturers : Panasonic Corporation

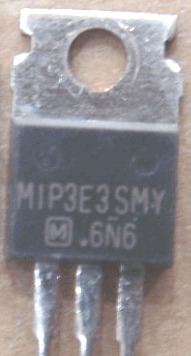

Image :

MIP3E3SMY Image

Description :

1. World Wide input correspondence, further reduce the power consumption at light load (50% reduction in the maximum than MIP2ExD series)

2. various protection circuit Built by possible real-time protection

3. Internal soft-start

Absolute maximum rating

1. Drain Voltage : VD = 700 V
2. Control Voltage : VC = 8 V
3. Drain Current : ID = 1.1 A
4. Peak Drain Current : IDP = 1.7 A
5. Control Current : IC = 0.1 A
6. Channel Temperature : Tch = 150 ° C
7. Storage Temperature : Tstg = -55 to + 150 ° C

Pinout

MIP3E3SMY Datasheet

Application

1. For switching power control
2. AC-DC converter
3. Power supply IC

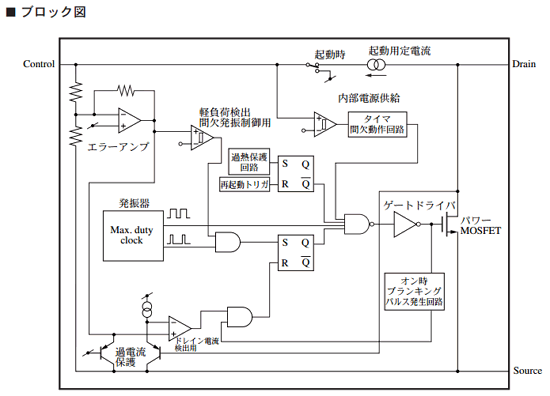

Block Diagram

MIP3E3SMY Pinouts

MIP3E3SMY Datasheet PDF Download

MIP3E3SMY pdf
