MMBTA55 Datasheet PDF – 60V, 4A, PNP Transistor

Part Number : MMBTA55

Marking Code : K2G

Function : – 60V, – 4A,  PNP Transistor.

Package : SOT-23 Type

Manufacturers : Diodes Incorporated.

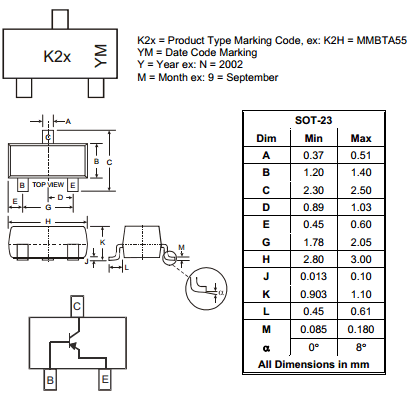

Pinouts :

MMBTA55 datasheet



Description :

This is 60V, PNP Small Signal Transistor.

Features :

1. Epitaxial Planar Die Construction

2. Complementary NPN Types Available (MMBTA05 / MMBTA06)

3. Ideal for Low Power Amplification and Switching

4. Lead, Halogen and Antimony Free, RoHS Compliant “Green” Device

5. Qualified to AEC-Q101 Standards for High Reliability



Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = – 60 V

2. Collector to Emitter Voltage : Vceo = – 60 V

3. Emitter to Base Voltage : Vebo = – 4 V

4. Collector Current : Ic = – 500 mA

5. Power Dissipation : Pd = 321 mW

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C



Mechanical Data :

1. Case: SOT-23

2. Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0

3. Moisture Sensitivity: Level 1 per J-STD-020d

4. Terminals: Solderable per MIL-STD-202, Method 208

5. Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe).

6. Weight: 0.008 grams (approximate)



MMBTA55 Datasheet PDF Download


MMBTA55 pdf

Other data sheets within the file : MMBTA55-7-F, MMBTA56, MMBTA56-7-F
