MMBTA63LT1G Datasheet PDF – Darlington PNP Transistor

Part Number : MMBTA63LT1G

Function : Silicon Darlington PNP Transistor

Package : SOT-23 ( TO-236 ) Type

Manufacturers : ON Semiconductor

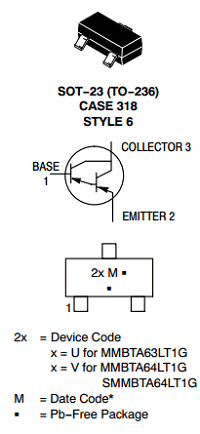

Image and Pinouts :

MMBTA63LT1G datasheet

Description :

This is Silicon Darlington PNP Transistor.

Features :

1. AEC−Q101 Qualified and PPAP Capable

2. Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements

3. These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = – 30V

2. Collector to Emitter Voltage : Vceo = – 30V

3. Emitter to Base Voltage : Vebo = – 10V

4. Collector Current : Ic = -500 mA

MMBTA63LT1G Datasheet PDF Download


MMBTA63LT1G pdf

Other data sheets within the file :

MMBTA63, MMBTA64LT1G, SMMBTA64LT1G
