MPR3 Datasheet – 3W, 350V, Metal Plate Resistor

This post explains for the resistor MPR3.

The Part Number is MPR3.

The function of this resistor is 3W, 350V, Metal Plate resistor.

Manufacturers : Stackpole Electronics


MPR3 datasheet resistor

Description : Flameproof Metal Plate Resistor

Features

1. Small size with high power ratio
2. Low resistance values and low inductance
3. Crimped leads keep circuit board temperatures cooler
4. RoHS compliant / lead-free

Specifications

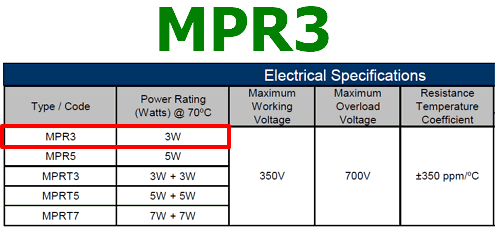

MPR3 specifications



MPR3 Resistor Datasheet

MPR3 pdf
