MT6260A Datasheet – GSM/GPRS/EDGE-RX SOC Processor

Part Number : MT6260A

Function : GSM/GPRS/EDGE-RX SOC Processor

Package : TFBGA Type ( 8.6mm*9.6mm, 199 ball 0.5 mm pitch package )

Manufactures : MediaTek Inc


MT6260A process mediatek



Description

MT6260A is a monolithic chip integrating leading edge power management unit, analog baseband and radio circuitry based on the low-power CMOS process.

MT6260A is a featu e-rich and extremely powerful single-chip  olution for high-end GSM/GPRS and EDGE-Rx capability. Based on the 32-bit ARM7EJ-S RISC processor, MT6260A’ s superb processing power, along with high bandwidth architecture and dedicated hardware support, provides a p atform for high-performance GPRS/EDGE-RxClass 12 MODEM application and leading edge multimedia applications.

Features

MT6260A consists of the following subsystems:
1. Microcontroller Unit (MCU) subsystem : Includesan ARM7EJ-S RISC processor and its accompanying memory management and interrupt handling logics

2. Digital Signal Processor (DSP) subsystem : Includesa DSP and its accompanying memory, memory controller and interrupt controller

3. MCU/DSP interface : Junction at which the MCU and the DSP exchange hardware and software information

4. Microcontroller peripherals: Include all user interface modules and RF control interface modules

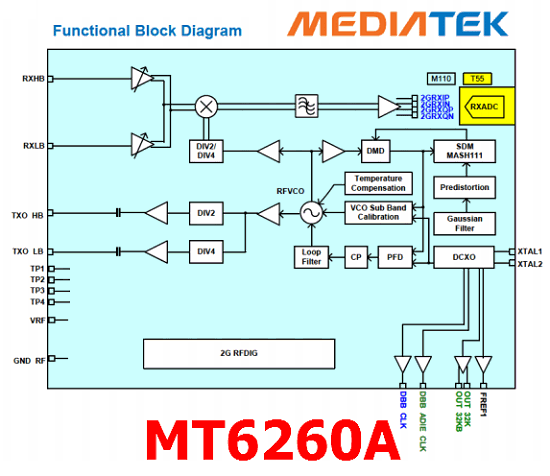

Block Diagram

MT6260A datasheet pdf pinout

MT6260A Datasheet
