MT6C04AE Datasheet PDF – NPN Transistor – Toshiba

Part Number : MT6C04AE

Function : Silicon NPN Epitaxial Planar Type Transistor

Package : Super Thin Mini 6 Pin ( ES6 )

Manufacturers : Toshiba

Marking :

MT6C04AE datasheet

Description :

Two devices are built in to the super-thin and extreme super mini (6 pins) package: ES6

Maximum Ratings ( Ta=25° )

1. Collector to Base Voltage : Vcbo = 10 V
2. Collector to Emitter Voltage : Vceo = 5 V
3. Emitter to Base Voltage : Vebo = 2 V
4. Collector Current : Ic = 40 mA
5. Collector Power  Dissipation : Pc = 100 mW
6. Junction Temperature : Tj = 125 °C
7. Storage Temperatue : Tsg = -55 ~ +125°C

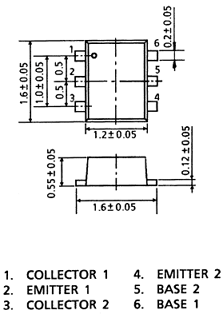

Pinouts :

Applications :

VHF~UHF Band Low Noise Amplifier



Other data sheets within the file : MT3S04AS, MT3S04AT
