MXC6202 Datasheet PDF – Dual Axis Accelerometer

Part Number : MXC6202

Function : Low Power, Low Profile ±2 gDual Axis Accelerometer with I2C Interface

Package : 5mm X 5mm X 1.55mm LCC Type

Manufacturers : MEMSIC, Inc

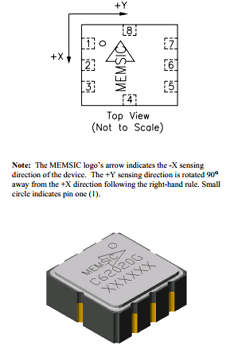

Pinouts :

MXC6202 datasheet



Description :

The MXC6202G/H/M/Nare low cost, dual axis accelerometers fabricated on a standard, submicron CMOS process. It is a complete sensingsystemwithon-chip mixed signalprocessing and integrated I2C bus, allowing the device to be connected directly to a microprocessor eliminating the need for A/D converters or timing resources.

Features

1. RoHS compliant
2. I2C Slave, FAST (≤400 KHz.) mode interface
3. 1.8V compatible IO
4. Embedded Power up/down and self-test function
5. On-chip temperature sensor available
6. Eight customer defined 7-bit addresses
7. 2.7 V to 3.6 V single supply continuous operation
8. Monolithic CMOS IC
9. Low power consumption: typically <2 mA @ 3.0 V
10. Resolution better than 1 milli-g
11. On chip mixed signal processing

Applications

1. Information Appliances – Cell Phones, PDA’s, Computer Peripherals, Mouse, Smart Pens
2. Consumer – LCD Projectors, Pedometers, Blood Pressure Monitor, Digital Cameras
3. Gaming – Joystick/RF Interface/Menu Selection/Tilt Sensing
4. GPS – Electronic Compass Tilt Correction, Dead Reckoning Assist



Other data sheets within the file : MXC6202G, MXC6202H, MXC6202M, MXC6202N
