NTC-5D9 Datasheet – 5 Ohm, NTC Thermistor – Exsense

Part Number: NTC-5D9, NTC5D-9

Function: 5Ω, 9mm, NTC Thermistor

Package: Disk, Radial Type

Manufacturer: Exsense


NTC-5D9 NTC Thermistor



This is 5Ω, 9mm, NTC Thermistor.

PT series NTC thermistor has to be connected in series to the power source circuit to avoid the surge current at the instant when the electronic circuits are turned on. The device can effectively suppress the surge current, and its resistance and power consumption can be greatly reduced after that through the continuous effect of the current so as not to affect the normal work current. Therefore the Power NTC thermistor is the most convenient and efficient instrument to curb the surge current and protect the electronic devices from being damaged.

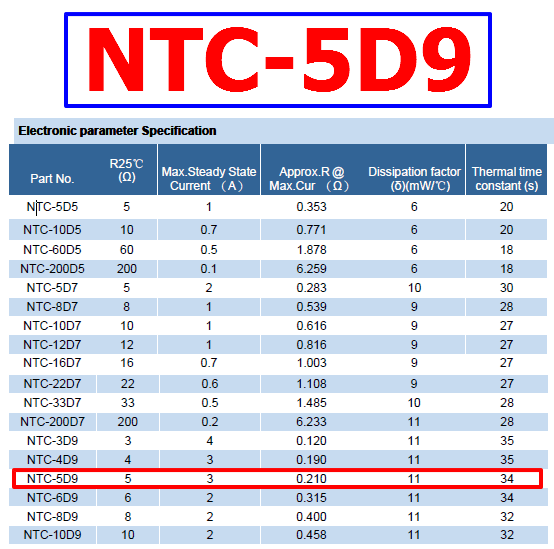

NTC-5D9 datasheet



1. Strong power and strong capability of surge current protection.

2. Characteristics Fast response to the rapidly surge.

3. Big material constant(B value),Small remain resistance.

4. High reliability.

5. Integral series, Extensive operating range.



1. Switching power supply

2. UPS power supply,

3. Electric heaters

4. Electronic energy-saving lamps

5. Filament protection of color tubes

NTC-5D9 Datasheet PDF
