OZ9936 Datasheet PDF – CCFL Inverter Controller – O2Micro

Part Number: OZ9936

Function: LCD Monitor CCFL Inverter Controller

Package: SOIC, PDIP 8 Pin type

Manufacturer: O2Micro International

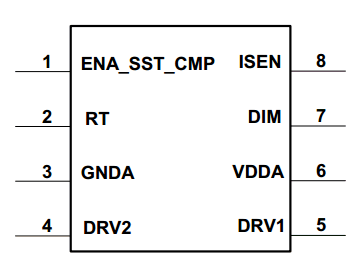

Pinouts:

OZ9936 datasheet



Description

The patent pending OZ9936 is a cost-effective CCFL (Cold Cathode Fluorescent Lamp) Power Management controller designed for driving CCFLs in Liquid Crystal Display (LCD) applications.

The OZ9936 provides two drive signals for most power conversion topologies, such as push-pull, half-bridge, full-bridge or Class-D inverters while maintaining high-efficiency operation. The highly integrated controller provides current and voltage regulation, soft-start operation, over-voltage protection and an external enabling function while maintaining a high-degree of design flexibility. The application requires a minimum number of off-the-shelf components.



components

Features

1. Built-in intelligence to ignite positive impedance CCFLs
2. Low cost LCD monitor inverter solution
3. Constant operating frequency
4. Built-in intelligence for ignition and normal operation of CCFLs
5. Built-in open-lamp protection and overvoltage protection
6. Optimized soft-start function
7. Supports both analog and external PWM dimming control

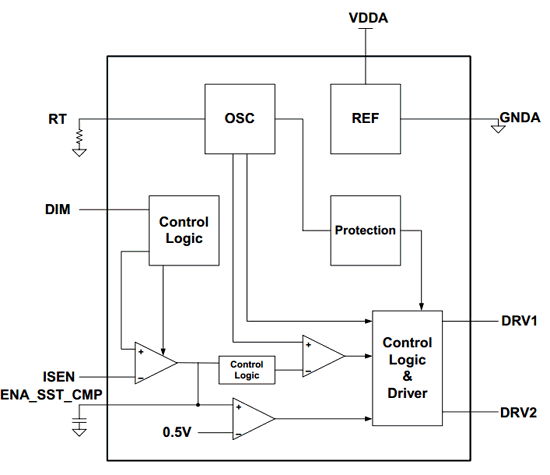

Block Diagram

components

Other data sheets are available within the file: OZ9936D, OZ9936DN, OZ9936G, OZ9936GN
