P1203BV Datasheet PDF – 30V, 11A, N-ch, FET – NIKO-SEM

Part Number: P1203BV

Function: 30V, 11A, N-Channel FET

Package: SOP 8 Pin

Manufacturer: NIKO-SEM, UNIKC Semiconductor

Image:

P1203BV image

Description

This is 30V, 11A, N-Channel Logic Level Enhancement Mode Field Effect Transistor.

Absolute Maximum Ratings (Ta = 25°C)

1. Gate-Source Voltage : VGS=  ±20  V

2. Continuous Drain Current : TA = 25 °C, I D =  11 A

3. Pulsed Drain Current : I DM = 40A

4. Operating Junction & Storage Temperature Range : Tj , Tstg =  -55 to 150  °C

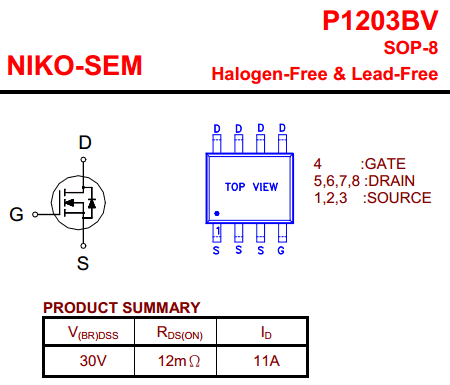

Pinout

P1203BV datasheet pinout



P1203BV Datasheet PDF Download

P1203BV pdf
