P1806 Datasheet – N-ch, Vdss=60V, 50A, MOSFET – ST

Part Number : STP1806, Marking : P1806

Function :N-CHANNEL 60V, 0.015 Ohm, 50A STripFET POWER MOSFET

Package : TO-220 Type

Manufactures : STMicroelectronics

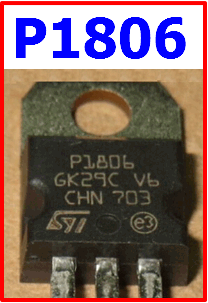

P1806 mosfet

Description

This Power MOSFET is the latest development of STMicroelectronis unique “Single Feature Size” strip-based process. The resulting transistor shows extremely high packing density for low on resistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.



Features

1. TYPICAL RDS(on) = 0.015
2. EXCEPTIONAL dv/dt CAPABILITY
3. 100% AVALANCHE TESTED
APPLICATIONS

1. HIGH CURRENT, HIGH SWITCHING SPEED
2. MOTOR CONTROL
3. DC-DC & DC-AC CONVERTERS
4. AUTOMOTIVE

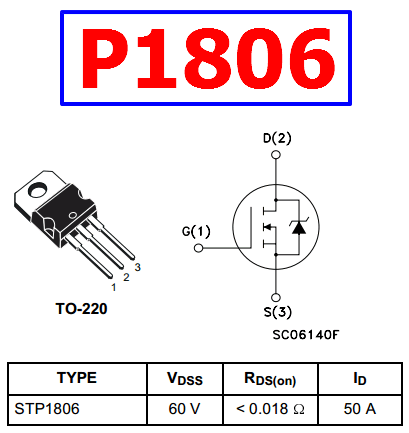

Pinout

P1806 datasheet pinout

Absolute Maximum Ratings

1. Drain-source Voltage (VGS= 0) : VDS = 60 V
2. Drain-gate Voltage (RGS= 20 k ) : VDGR = 60 V
3. Gate- source Voltage : VGS =  ± 20 V
4. Drain Current (continuous) at TC= 25°C : ID = 50 A
5. Drain Current (continuous) at TC= 100°C : ID = 35 A
6. Drain Current (pulsed) : IDM = 200 A
7. Total Dissipation at TC= 25°C : Ptot = 110 W
