P6NA60FI Datasheet PDF – 600V, N-Channel MOSFET – ST

Part Number : P6NA60FI

Function : N – CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR

Package : TO-220, ISOWATT220 Type

Manufacturers : STMicroelectronics

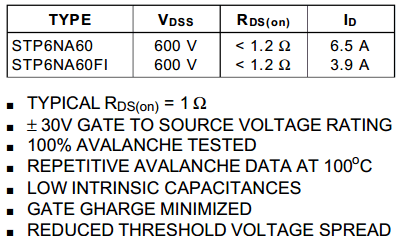

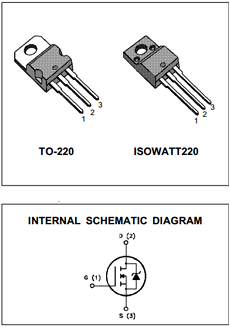

Pinouts :

P6NA60FI datasheet



Description :

This series of POWER MOSFETS represents the most advanced high voltage technology. The optimized cell layout coupled with a new proprietary edge termination concur to give the device low RDS(on)and gate charge, unequalled ruggedness and superior switching performance.

Applications

1. HIGH CURRENT, HIGH SPEED SWITCHING
2. SWITCH MODE POWERSUPPLIES (SMPS)
3. DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE



Absolute Maximum Ratings

1. Drain-source Voltage (VGS = 0) : VDS = 600 V
2. Drain-gate Voltage (RGS = 20 kW) : VDGR = 600 V
3. Gate-source Voltage : VGS = ± 30 V
4. Drain Current (continuous) at Tc = 25’C : ID = 3.9 A
5. Drain Current (continuous) at Tc = 100 ‘C : ID = 2.6 A
6. Total Dissipation at Tc = 25 C : Ptot  = 45 W

Other data sheets within the file : P6NA60, TP6NA60, STP6NA60FI
