P7NB60 Datasheet – N-ch, 600V, Power MOSFET – ST

Part Number : STP7NB60, Marking : P7NB60

Function : N-Channel 600V, PowerMESH MOSFET

Package :  TO-220 Pin type

Manufacturers : STMicroelectronics ( http://www.st.com )


p7nb60-600v-mosfet



Description

Using the latest high voltage MESH OVERLAY process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances. The new patent pending strip layout coupled with the Company’s proprietary edge termination structure, gives the lowest RDS(on) per area, exceptional avalanche and dv/dt capabilities and unrivalled gate charge and switching characteristics.

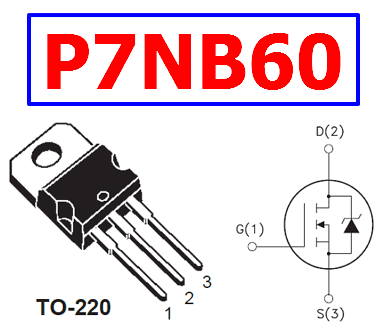

Pinout

p7nb60-datasheet-pinout



Features

1. TYPICALRDS(on) = 1.0 W
2. EXTREMELY HIGH dv/dt CAPABILITY
3. 100% AVALANCHE TESTED
4. VERYLOW INTRINSIC CAPACITANCES
5. GATECHARGE MINIMIZED

Applications

1. HIGH CURRENT, HIGH SPEED SWITCHING
2. SWITCH MODE POWER SUPPLIES (SMPS)
3. DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE



P7NB60 Datasheet
