PCM5101A-A1 Datasheet PDF – Audio Stereo DAC

Part Number: PCM5101A-A1

Function: 2-V rms DirectPath , 112, 106, 100-dB Audio Stereo DAC

Package: TSSOP 20 Pin Type

Manufacturer: Texas Instruments

Image:

PCM5101A-A1 datasheet



Description

The PCM5101A-A1, PCM510xA-Q1 devices are a family of monolithic complementary metal oxide semiconductor (CMOS) integrated circuits that include a stereo digital-to analog converter and additional support circuitry in a small TSSOP package. The PCM510xA-Q1 uses the latest generation of TI’s advanced segment-digital analog converter (DAC) architecture to achieve excellent dynamic performance and improved tolerance to clock jitter.

Pinouts:

components

Features

1. Ultra Low Out-of-Band Noise

2. Integrated High-Performance Audio PLL with BCK Reference to Generate SCK Internally

3. Direct Line Level 2.1-VRMS Output

4. No DC Blocking Capacitors Required

5. Line Level Output Down to 1KΩ

6. Intelligent Muting System; Soft Up or Down Ramp and Analog Mute For 120-dB Mute SNR

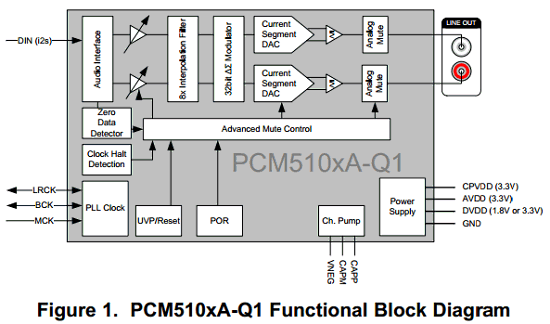

Block Diagram :

components





PCM5101A-A1 Datasheet PDF Download


PCM5101A-A1 pdf

Other data sheets are available within the file:

P5100AQ1, P5101AQ1, P5102AQ1, PCM5100AQPWRQ1, PCM5102A-A1
