PIC16F877A Datasheet PDF – Microcontroller – Microchip

Part Number : PIC16F877A

Function : 28/40/44-Pin Enhanced Flash Microcontrollers

Package : 40Pin DIP, 44-Pin QFN

Manufacturers : Microchip Technology

Image :

PIC16F877A Microcontroller




Description :

PIC16F873A/876A devices are available only in 28-pin packages, while PIC16F874A / PIC16F877A devices are available in 40-pin and 44-pin packages.

There are three memory blocks in each of the PIC16F87XA devices. The program memory and data memory have separate buses so that concurrent access can occur and is detailed in this section.

The PIC16F87XA devices have a 13-bit program counter capable of addressing an 8K word x 14 bit program memory space. The PIC16F876A/877A devices have 8K words x 14 bits of Flash program memory, while PIC16F873A/874A devices have 4K words x 14 bits. Accessing a location above the physically implemented address will cause a wraparound.

Pinout

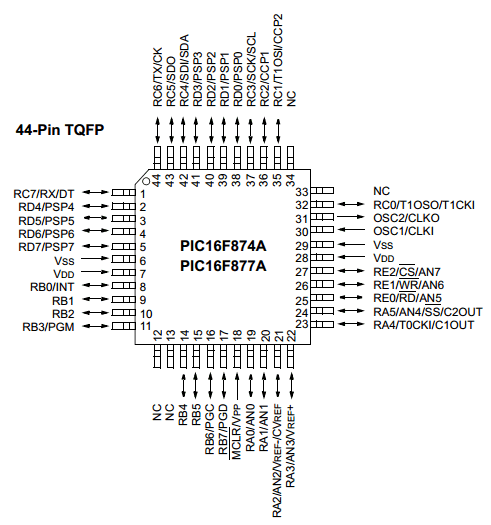

PIC16F877A pinouts

PIC16F877A Datasheet

Special Microcontroller Features:

• 100,000 erase/write cycle Enhanced Flash program memory typical
• 1,000,000 erase/write cycle Data EEPROM memory typical
• Data EEPROM Retention > 40 years
• Self-reprogrammable under software control
• In-Circuit Serial Programming (ICSP) via two pins
• Single-supply 5V In-Circuit Serial Programming
• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
• Programmable code protection
• Power saving Sleep mode
• Selectable oscillator options
• In-Circuit Debug (ICD) via two pins



PIC16F877A Datasheet PDF Download

PIC16F877A pdf



Other data sheets within the file : PIC16F873, PIC16F874, PIC16F876, PIC16F877
