PVC160202 Datasheet PDF – 16 x 2 Line, Dot Matrix Module

Part Number: PVC160202

Function: Liquid Crystal Display

Package: PCB Type

Manufacturer: Beck GmbH & Co. Elektronik Bauelemente KG

Image:

PVC160202 datasheet



Description

This is 16 x 2 Line, Dot Matrix, Liquid Crystal Display.

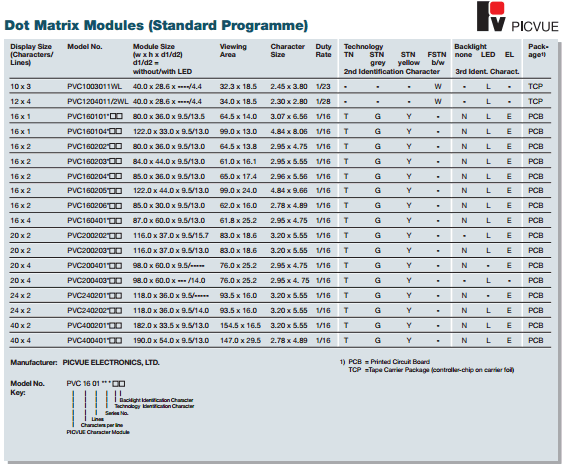

components

Features

1. TN Twisted Nematic For duty rate up to 1/16 (segment displays)

2. HTN High Twisted Nematic For duty rate 1/8…1/16 (segment displays)

3. STN Super Twisted Nematic For duty rate from 1/16 (graphic displays)
“grey mode” For white backlight (LED, CCFL, EL)
“yellow mode” For LED backlight (yellow-green)

3. FSTN Film Compensated STN For displays with high resolution, fine structures
“black/white mode” For white backlight (LED, CCFL, EL)

4. TDF Transflective Diffusor Film For displays with highest demands on readability
“paper white”

PVC160202 Datasheet PDF Download


PVC160202 pdf

Other data sheets are available within the file:

PVC1003011, PVC1204011, PVC160101, PVC160104
