QCA9533 Datasheet – QCA9533-AL3A Chipset – Qualcomm

Part Number : QCA9533, QCA9533-AL3A

Manufacturers : Qualcomm ( https://www.qualcomm.com/ )

Function : Router CPU, Wireless chip

Description : QCA9533 (Honey Bee), MIPS 24Kc, 560 MHz, bgn, 2×2:2, AP143

Image :QCA9533 image

QCA9533 Datasheet

QCA9533 Datasheet

Reference Informations :

The QCA9531 is a highly integrated and feature-rich IEEE 802.11n 2×2 2.4 GHz System-on-a-Chip (SoC) for advanced WLAN platforms.

Specifications :

1. CPU : CPU Clock Speed: Up to 650 MHz

2. Wi-Fi

(1) Standards: 802.11a/b/g, 802.11n

(2) Peak Speed: 300 Mbps

(3) Channel Utilization: 20/40 MHz

(4) MIMO Configuration: 2×2 (2-stream)

3. Ethernet

(1) Ethernet Standards: IEEE 802.3

(2) Ethernet Network: 10/100

(3) Supported Ports: 5 ports

4. USB : USB Version: USB 2.0

5. Memory

(1) Memory Speed: 300MHz, 200MHz

(2) Memory Type: DDR1, DDR2

6. Interfaces : Supported Interfaces: JTAG, SPI, UART, USB 2.0, PCIe 1.1

7. Input/Output : General Purpose I/Os: 17x

8. Package

(1) Package Type: DRQFN

(2) Size: 12 x 12 mm

Reference Site :

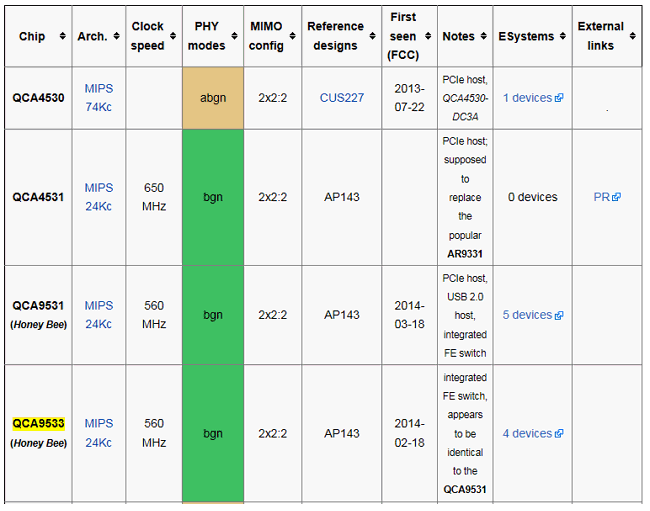

1. Qualcomm Atheros – WikiDevi.Wi-Cat.RU

2. https://wikidevi.com/wiki/Qualcomm_Atheros
