R1200F PDF – 1200V, 500mA, Diode, Rectifier

Part Number: R1200F

Function: 1200V, 500mA, Diode, Rectifier

Package: DO-41 Type

Manufacturer: Bytes, Io

Image and Pinouts:

R1200F datasheet



Description

This is 1200V, 500mA, HIGH VOLTAGE FAST RECOVERY RECTIFIER.

Features

1. Low forward voltage drop

2. High current capability

3. High reliability

4. High surge current capability

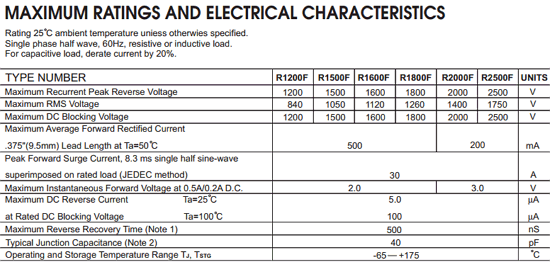

components

Mechanical Data :

1. Case : Molded plastic

2. Epoxy : UL 94V-0 rate flame retardant

3. Lead : Axial leads, solderable per MIL-STD-202, method 208 guranteed

4. Polarity : Color band denotes cathode end

5. Mounting position : Any

6. Weight: 0.34 grams

Other data sheets are available within the file: R1500F, R1600F, R1800F, R2000F

R1200F Datasheet PDF Download

R1200F pdf
