R820T2 Datasheet – Digital TV Silicon Tuner – Rafael Micro

Part Number : R820T2

Function : High Performance Low Power Advanced Digital TV Silicon Tuner

Package : QFN 24 Type

Manufacturers : Rafael Micro

ImageĀ :

R820T2 image

Description :

The R820T2 is a highly integrated silicon tuner that builds in low noise amplifier (LNA), mixer, fractional PLL, VGA, voltage regulator and tracking filter, eliminating the need for external SAW filters, LNA, balun, and LDO. Thanks the LNA architecture, R820T offers the lowest cost and high performance solution for digital TV application. On-chip LDO, high performance LNA, and small package enable R820T the perfect solution for both cost and font factor sensitive applications.

Pinout :

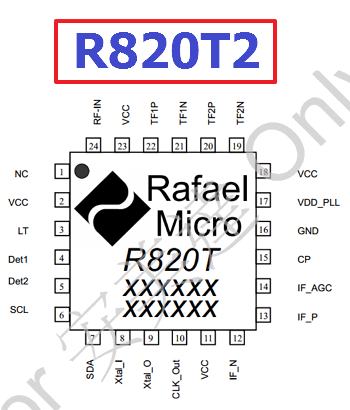

R820T2 datasheet pinout

FeaturesĀ :

  1. Support all digital TV standards: DVB-T, ATSC, DTMB and ISDB-T.
  2. Lowest BOM cost WITHOUT external SAW filters, LNA, balun, LDO, and adjustable parts.
  3. Low cost Single-In Digital TV Application
  4. Compliant with EN 300 744, Nordig 2.2, D-BOOK 7.0, ARIB B21, ABNT 15604, ATSC A74 and
    GB20600-2006
  5. Compliant with EN-55020, EN55013 and FCC
  6. Ultra low power consumption < 178mA
  7. Single power supply 3.3V
  8. 2-wired I2C interface

R820T2 Datasheet PDF Download
