RDA5807FP Datasheet – Broadcast FM Stereo Radio Tuner – RDA

Part Number : RDA5807FP

Function : SINGLE-CHIP BROADCAST FM RADIO TUNER

Package : SOP-16 Pin Type

Manufacturers : RDA Microelectronics


RDA5807FP FM stereo radio tuner

Description

The RDA5807FP series is the newest generation single-chip broadcast FM stereo radio tuner with fully integrated synthesizer, IF selectivity, RDS/RBDS and MPX decoder. The tuner uses the CMOS process, support multi-interface and require the least external component. The package sizes is SOP16. It is completely adjustment-free. All these make it very suitable for portable devices. The RDA5807FP series has a powerful low-IF digital audio processor, this make it have optimum sound quality with varying reception conditions.



Pinout

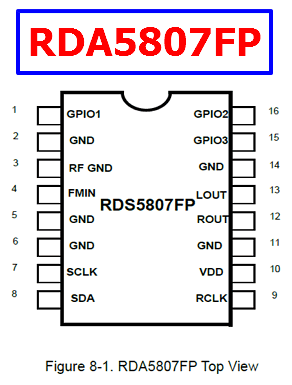

RDA5807FP datasheet pinout



Features

1. CMOS single-chip fully-integrated FM tuner 
2. Low power consumption 
(1) Total current consumption lower than 20mA at 3.0V power supplywhen under normal situation 
3. Support worldwide frequency band : 50 -108 MHz
4. Support flexible channel spacing mode : 100KHz, 200KHz, 50KHz and 25KHz 
5. Support RDS/RBDS
6. Digital low-IF tuner
(1) Image-reject down-converter
(2) High performance A/D converter
(3) IF selectivity performed internally



RDA5807FP Datasheet
