Part Number: RJK0822, RJK0822SPN
Function: 80V, 8A, N-Channel MOSFET
Package: TO-220 Type
Manufacturer: Renesas
Image :
Description:
This is 80V, 80A, Silicon N Channel Power MOSFET.

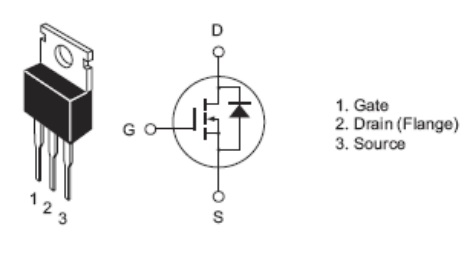

Pinouts:
Features:
1. Low on-resistance : 2. RDS(on) = 7.9mW typ.(at VGS = 10V)
2. High speed switching
3. Low drive current
4. Suitable for motor drive, DC-DC converter, power switch and solenoid drive
Absolute Maximum Ratings (Ta = 25°C)
1. Drain to source voltage: VDSS = 80 V
2. Gate to source voltage: VGSS = ± 20 V
3. Drain current: ID = 80 A
4. Channel dissipation: Pch = 100 W
5. Channel temperature: Tch = 150 °C
6. Storage temperature: Tstg = -55 to +150 °C
Applications:
1. Power Switching
Other data sheets are available within the file: RJK0822SPN-00, RJK0822SPN
