RJP63F3A Datasheet PDF – 630V, 40A, N-ch, IGBT – Renesas

Part Number: RJP63F3A

Function: 630V, 40A, N-channel IGBT

Package: TO-220FL Type

Manufacturer: Rensas

Image: RJP63F3A

Description

This is 630V, 40A, Silicon N Channel IGBT.

Features

1.  Trench gate and thin wafer technology (G6H series)

2.  Low collector to emitter saturation voltage  VCE(sat)= 1.7 V typ

3.  High speed switching tf = 100 ns typ

4.  Low leak current  ICES= 1 μA max

5.  Isolated package TO-220FL

JP63F3A = RJP63F3DPP-M0



Applications:

1. High Speed Power Switching

RJP63F3A Datasheet

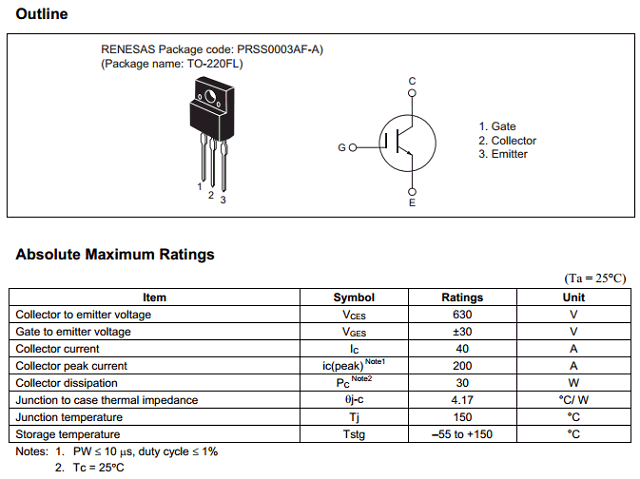

RJP63F3A Pinouts
