Part Number: RSN308M24-P
Function: Power Circuit Audio Output IC
Package: SIP 22 Pin type
Manufacturer: Panasonic Corporation
Image:
Description:
This is IC for Power Audio amplifier. The IC is SIP 22 package.

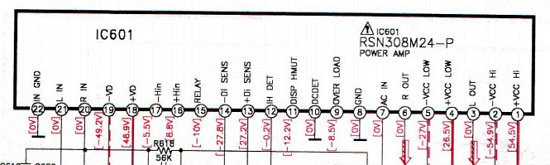

Pinouts:
1. +Vcc Hi
2. -Vcc Hi
3. L Out
4. +Vcc Low
5. -Vcc Low
6. R Out
7. AC IN
8. GND
9. Over Load
10. DCDET
11. DISP HMUT
12. IH DET
13. +Di SENS
14. -Di SENS
15. Relay
16. +Hin
17. -Hin
18. +VD
19. -VD
20. R IN
21. L IN
22. IN GND
RSN308M24-P Datasheet PDF Download
