RZE002P02 Datasheet – 1.2V Drive Pch MOSFET – Rohm

Part Number : RZE002P02

Function : 1.2V Drive Pch MOSFET

Package : SOP-EMT3 type

Manufacturers : Rohm ( http://www.rohm.com/ )

Image :

RZE002P02


Features

1) High speed switching.
2) Small package (EMT3).
3) 1.2V drive.

Structure : Silicon P-channel MOSFET

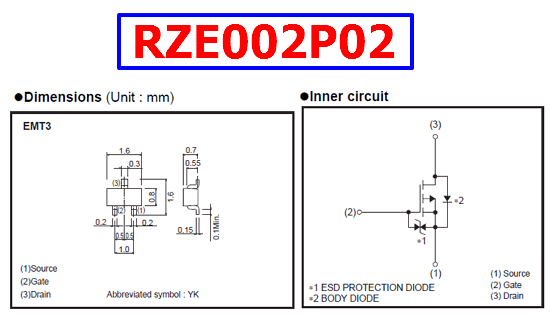

Pinout



Absolute Maximum Ratings(Ta = 25℃)

1. Drain-source voltage : Vdss = -20V
2. Gate-source voltage : Vgss = +- 20V
3. Total power dissipation : Pd = 150 mW

RZE002P02 Datasheet PDF



Other data sheets within the file : RZE002P02TL
