S-AV28 Datasheet – RF Power Amplifier Module – Toshiba

Part Number : S-AV28

Description : VHF Band HAM FM RF Power Amplifier

Package : 5-23E Module Type

Manufactures : Toshiba

Image : S-AV28 Image



Application :

1. VHF Band HAM FM RF Power Amplifier Module
2. Hand-Held Transceiver

Maximum Ratings ( Tc = 25’C )

1. DC Supply Voltage : Vdd = 17 V
2. DC Supply Voltage : Vgg = 6 V
3. Input Power : Pi = 50 mW
4. Output Power : Po = 12 W
5. Total Current : It = 3A

Pinout :

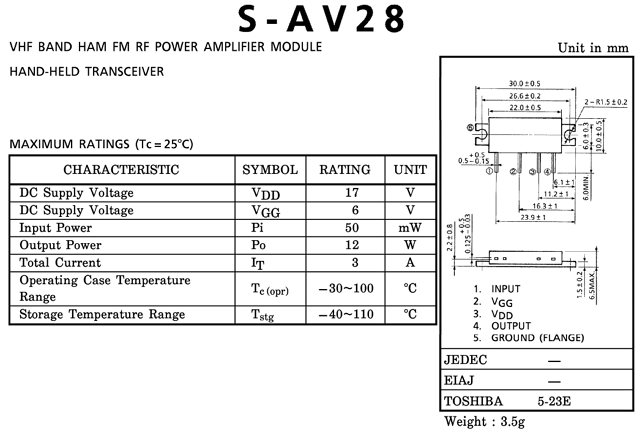

S-AV28 Datasheet
