S1854 Datasheet – Vcgo=150V, Regulator Driver – Toshiba

Part Number : S1854

Function : Silicon N-Substrate Monolithic Type

Package : TO-220AB Type

Manufactures : Toshiba


S1854 regulator driver

Description

S1854 is a regulator driver for line operated TV, which are built up of error amplifier transistor, standard voltage zener diode and poly-silicon resistors on monolithic chip.

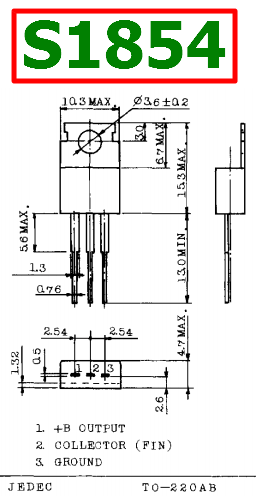

Pinout

S1854 datasheet pdf



Features

1. Possible to eliminate the output voltage adjustment of regulator stage in line operated tv, combined with the usual power transistors.

2. High voltage ( Vcgo > 150V )

3. Excellent temperature characteristics of regulated output voltage.



S1854 Datasheet
