S6B0717X01-XXXN Datasheet PDF – Controller For STN LCD

Part Number : S6B0717X01-XXXN

Function : 55 COM / 100 SEG DRIVER & CONTROLLER FOR STN LCD

Package : Gold bumped chip or TCP Type ( 470 µm )

Manufacturers : Samsung

Images :

S6B0717X01-XXXN datasheet

Description :

The S6B0717 is a driver & controller LSI for graphic dot-matrix liquid crystal display systems. It contains 55 common and 100segment driver circuits. This chip is connected directly to a microprocessor, accepts serial or 8-bit parallel display data and stores in an on-chip display data RAM of 65x 100bits.It provides a high-flexible display section due to 1-to-1 correspondence between on-chip display data RAM bits and LCD panel pixels. And it performs display data RAM read/write operation with no external operating clock to minimize power consumption.

In addition, because it contains power supply circuits necessary to drive liquid crystal, itis possible to make a display system with the fewest components.

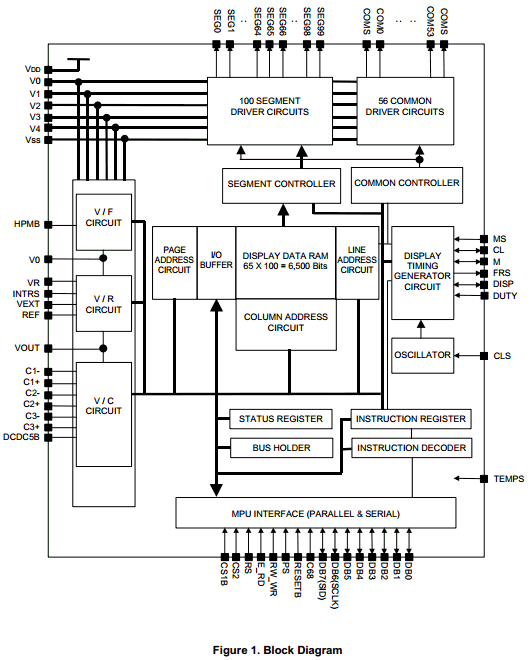

Block Diagram

Features

1. Driver Output Circuits : 55 common outputs / 100 segment outputs
2. Microprocessor Interface : 8-bit parallel bi-directional interface with 6800-series or 8080-series
3. Wide Operating Temperature Range : Ta = -40°C to 85 °C

Other data sheets within the file : S6B0717X01-B0CY, S6B0717X01-B0CZ, S6B0717X01-xxX0
