SEM2106 Datasheet – CCFL Inverter Driver IC

Part Number : SEM2106

Function : CCFL Inverter Driver IC

Package : SOP 24 Pin Type

Manufacturers : Samsung

SEM2106 image

Description

1. Single N/N type Inverter
2. High Frequency Voltage Mode PWM Control
3. Easy Burst Dimming Control
4. Built-In Soft Strat Function
5. Built-In Low Frequency PWM Generator
6. External UVLO function
7. Latched Mode Protection
8. Adjustable Shut-down time
9. Variable Protection function

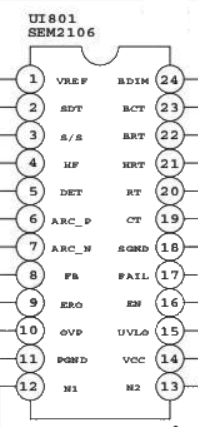

PinoutSEM2106 Pinout, SEM2106 Datasheet



Schematic

Reference Site :

http://www.badcaps.net/forum/showthread.php?t=32636



SEM2106 Datasheet PDF Download

SEM2106 pdf
