SN65LVDS95-Q1 Datasheet PDF

Part Number : SN65LVDS95-Q1

Function : LVDS SERDERS TRANSMITTER

Manufacturers : Texas Instruments

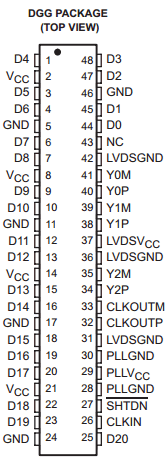

Pinouts :

SN65LVDS95-Q1 datasheet

Description :

description/ordering information
The SN65LVDS95 LVDS serdes (serializer/deserializer) transmitter contains three 7-bit parallel-load serial-out shift registers, a 7×clock synthesizer, and four low-voltage differential signaling (LVDS) line drivers in a single integrated circuit. These functions allow 21 bits of single-ended LVTTL data to be synchronously transmitted over 4 balanced-pair conductors for receipt by a compatible receiver, such as the SN65LVDS96.

Qualified for Automotive Applications
21:3 Data Channel Compression at up to 1.36 Gigabits per Second Throughput
Suited for Point-to-Point Subsystem Communication With Very Low EMI
21 Data Channels Plus Clock in Low-Voltage TTL and 3 Data Channels Plus
Clock Out Low-Voltage Differential
Operates From a Single 3.3-V Supply and 250 mW (Typ)
5-V Tolerant Data Inputs
LVDS95 Has Rising Clock Edge Triggered nputs
Bus Pins Tolerate 6-kV HBM ESD
Packaged in Thin Shrink Small-Outline
Package With 20 Mil Terminal Pitch
Consumes <1 mW When Disabled
Wide Phase-Lock Input Frequency Range
20 MHz to 68 MHz
No External Components Required for PLL
Inputs Meet or Exceed the Requirements of
ANSI EIA/TIA-644 Standard
ndustrial Temperature Qualified
TA= −40°C to 85°C
Replacement for the National DS90CR215
