SN74AUP1G00DCKRE4 Datasheet – Positive-NAND Gate

Part Number : SN74AUP1G00DCKRE4

Function : SN74AUP1G00 Low-Power Single 2-Input Positive-NAND Gate

Package : 5 Pin, SC70 Type

Manufacturers : Texas Instruments

Pinouts :

SN74AUP1G00DCKRE4 datasheet



Description :

The AUP family is TI’s premier solution to the industry’s low-power needs in battery-powered portable applications. This family ensures a very low static and dynamic power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in an increased battery life. This product also maintains excellent signal integrity.

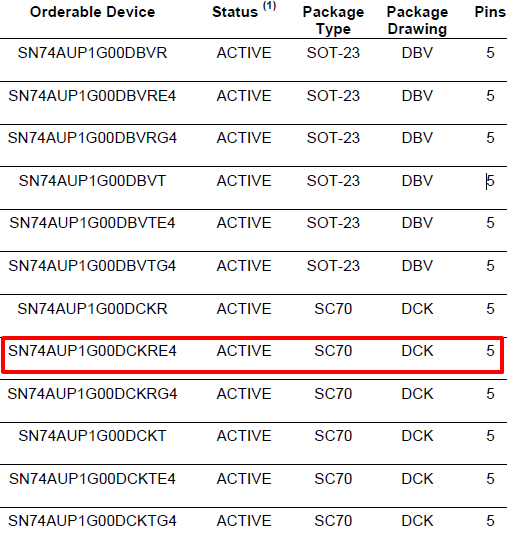

Ordering Information

SN74AUP1G00DCKRE4 nand gate

Features

• Wide Operating VCC Range of 0.8 V to 3.6 V

• Low Static-Power Consumption

• Low Dynamic-Power Consumption

• Optimized for 3.3-V Operation

• Low Noise Overshoot and Undershoot

• Suitable for Point-to-Point Applications

• ESD Performance Tested Per JESD 22

Applications

• ATCA Solutions
• Active Noise Cancellation (ANC)
• Barcode Scanner
• Blood Pressure Monitor
• CPAP Machine
• Cable Solutions
• DLP 3D Machine Vision, Hyperspectral Imaging, Optical Networking, and Spectroscopy
• E-Book
• Embedded PC

Other data sheets within the file :

SN74AUP1G00, SN74AUP1G00DBVR, SN74AUP1G00DBVT, SN74AUP1G00DBVTG4, SN74AUP1G00DCKR

SN74AUP1G00DCKRE4 Datasheet PDF Download


SN74AUP1G00DCKRE4 pdf
