SS1091ASN Datasheet PDF – LCD TV Controller (= OZ9966)

This is a kind of Controller

Part Number: SS1091ASN

Function: High performance controller

Package: SMD 24 Pin Type


SS1091ASN image


The SS1091ASN High performance controller designed for large-size LCD TV applications requiring multiple lamps. It achieves a high efficiency power conversion with minimal switching loss using a full-bridge N-Channel MOSFET topology. High transmission capacity, supports a wide input range, and provides a constant user-defined operating frequency.


1. Full-bridge or dual-forward topology

2. Integrated high side N-MOSFET driver

3. High drive capability and System synchronization

4. Dedicated pins for Analog and LPWM dimming

5. Selectable PWM dimming polarity

6. Constant operating frequency

7. Built-in intelligence to manage lamp ignition and normal operation

8. Open-lamp, over-voltage, over-current, and under-voltage lockout protection

9. User-defined striking and shutdown delay timers

10. Soft start function

SS1091ASN  (= OZ9966)

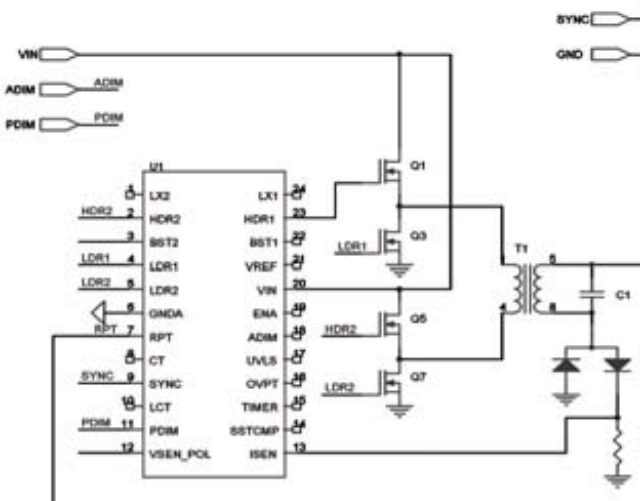

SS1091ASN Pinouts
