SS8050BBU Datasheet – NPN Transistor – Fairchild

Part Number : SS8050BBU

Top Mark : S8050

Function : NPN Epitaxial Silicon Transistor

Package : TO-92 type

Manufacturers : Fairchild ( https://www.fairchildsemi.com/ ), On semiconductor

Image :

SS8050BBU Datasheet

Features

1. 2 W Output Amplifier of Portable Radios in Class B Push-pull Operation.
2. Complimentary to SS8550
3. Collector Current: IC = 1.5 A



Pinout



Absolute Maximum Ratings

Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only. Values are at TA = 25°C unless otherwise noted.

1. VCBO : Collector-Base Voltage = 40 V
2. VCEO : Collector-Emitter Voltage = 25 V
3. VEBO : Emitter-Base Voltage = 6 V
4. IC : Collector Current = 1.5 A
5. TJ : Junction Temperature = 150 °C

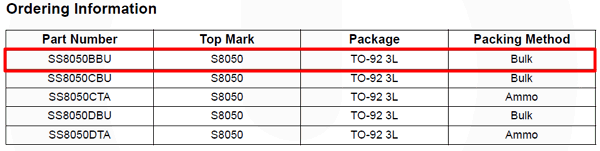

Ordering information



SS8050BBU Datasheet PDF
